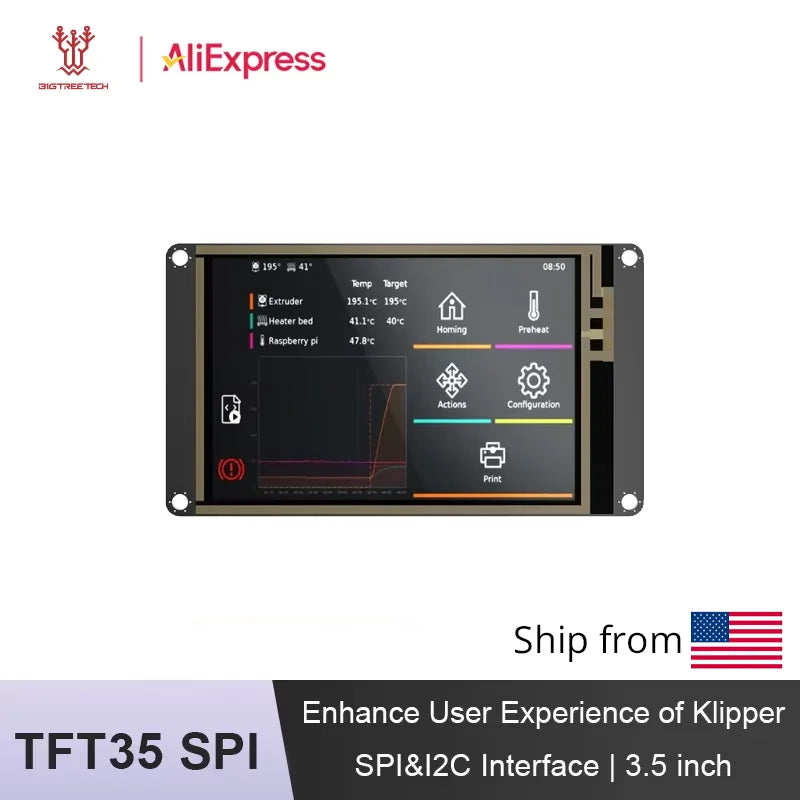

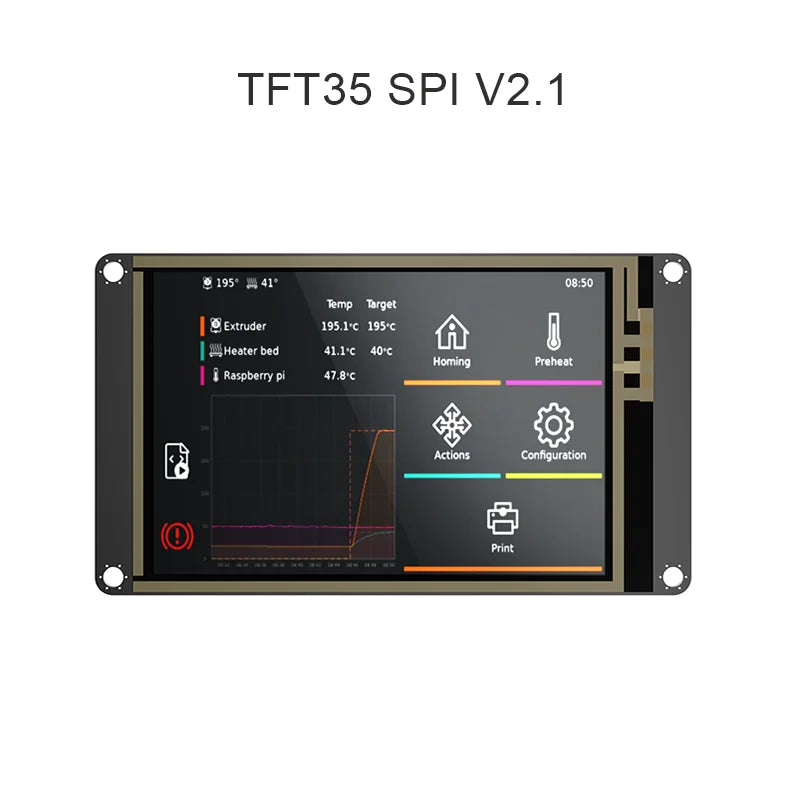

BIGTREETECH TFT35 SPI V2.1 Touch Screen Module 3.5'' 480x320 TFT Display for CB1 M8P 3D Printer Motherboard
Brand Name: BIGTREETECH
High-concerned chemical: None
Item Type: Display Screen
Model Number: TFT35 SPI V2.1 Only
Origin: Mainland China
Note:

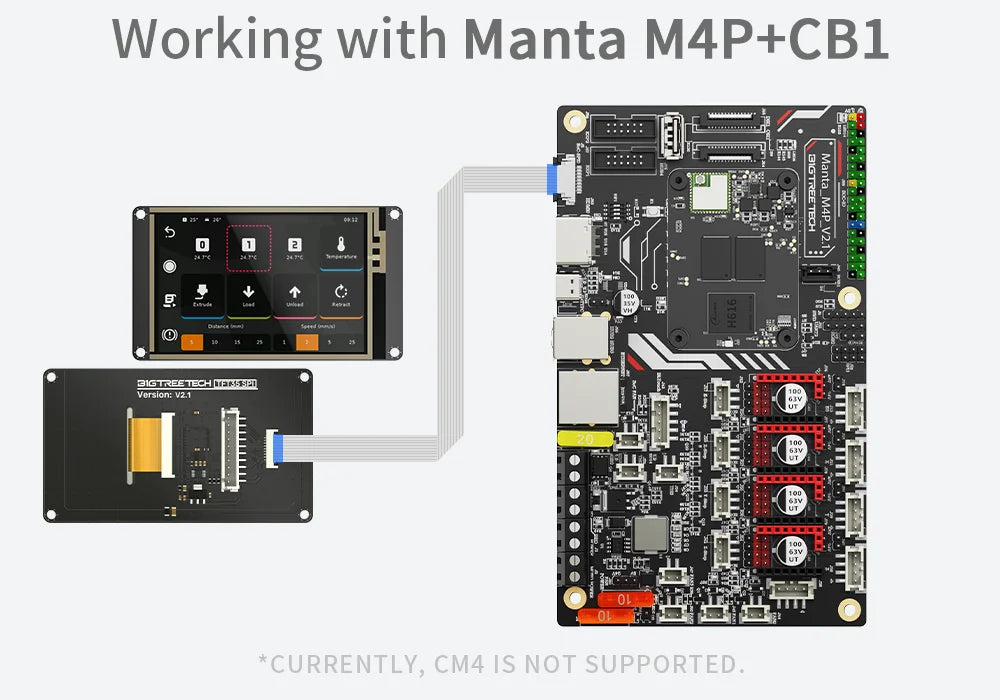

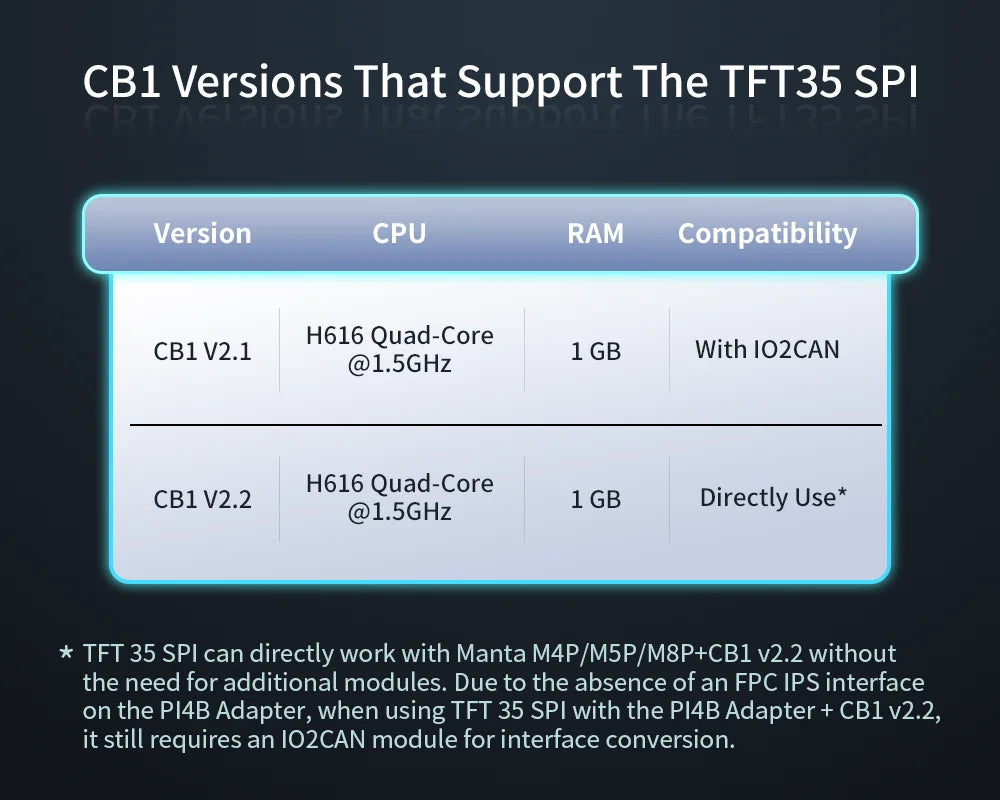

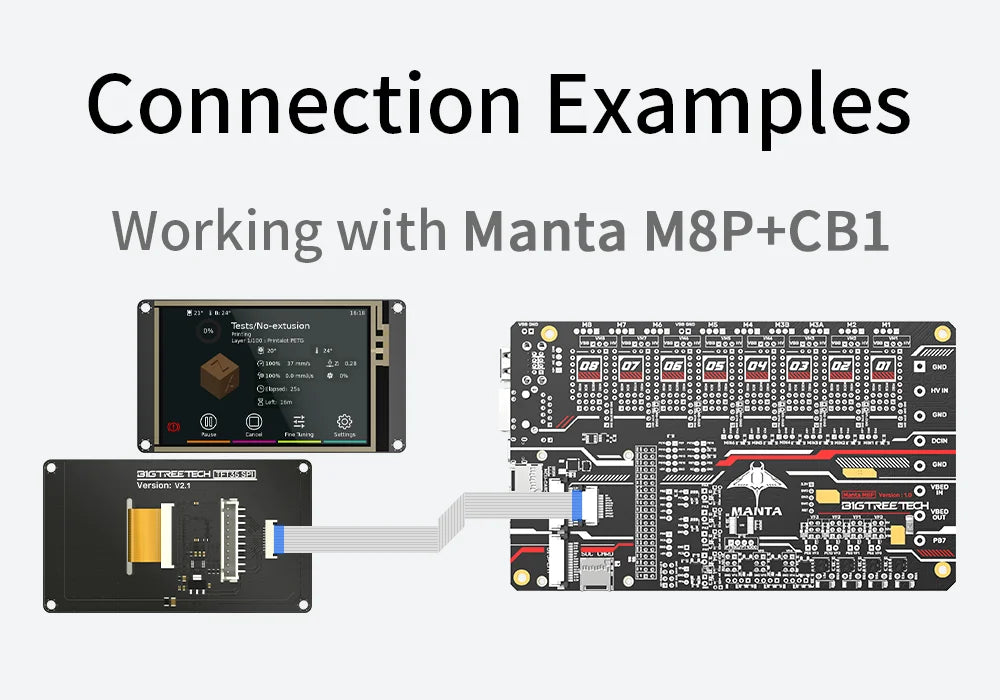

TFT 35 SPI can directly work with Manta M4P/M5P/M8P+CB1 v2.2 without the need for additional modules.

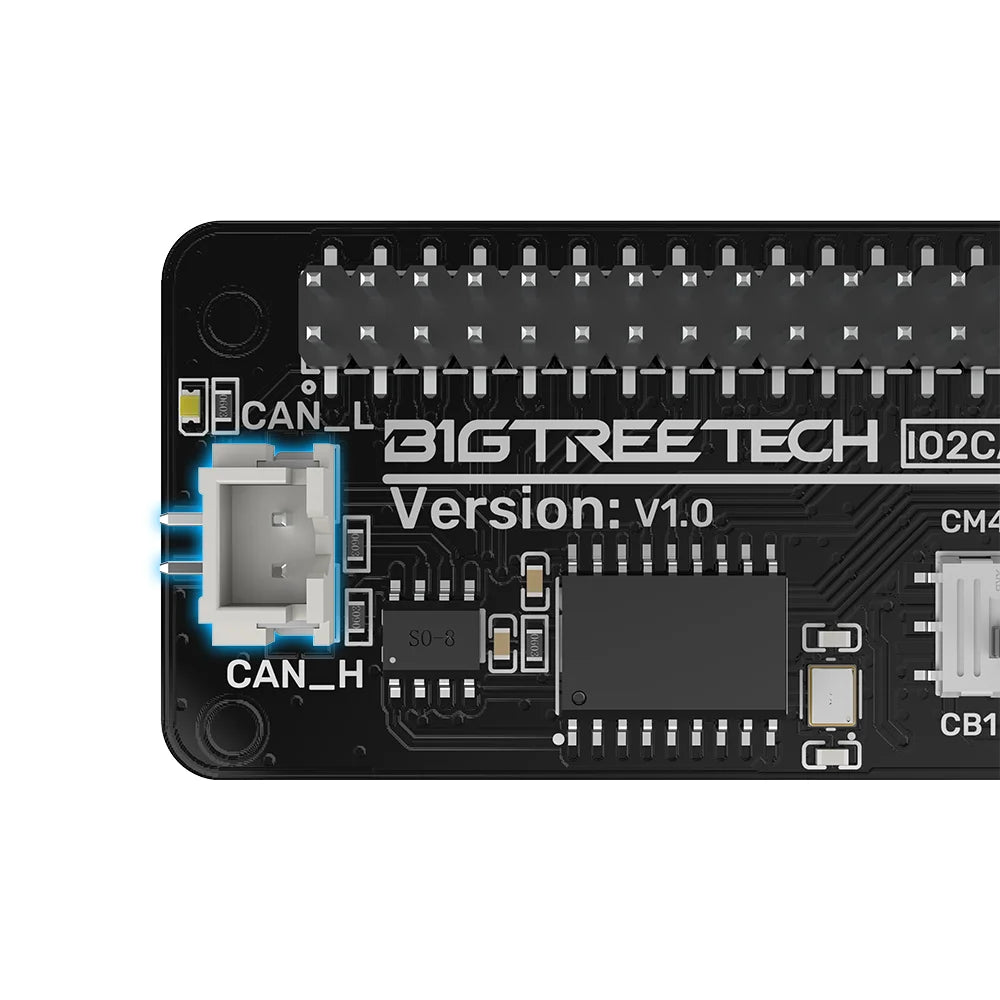

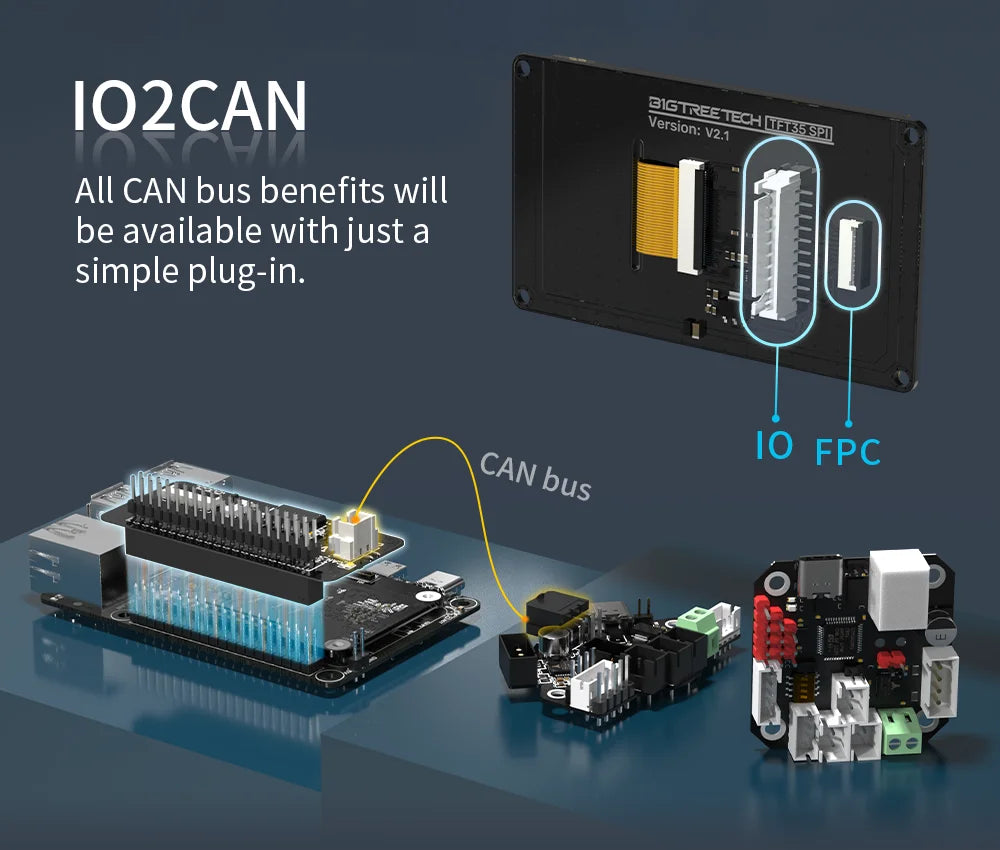

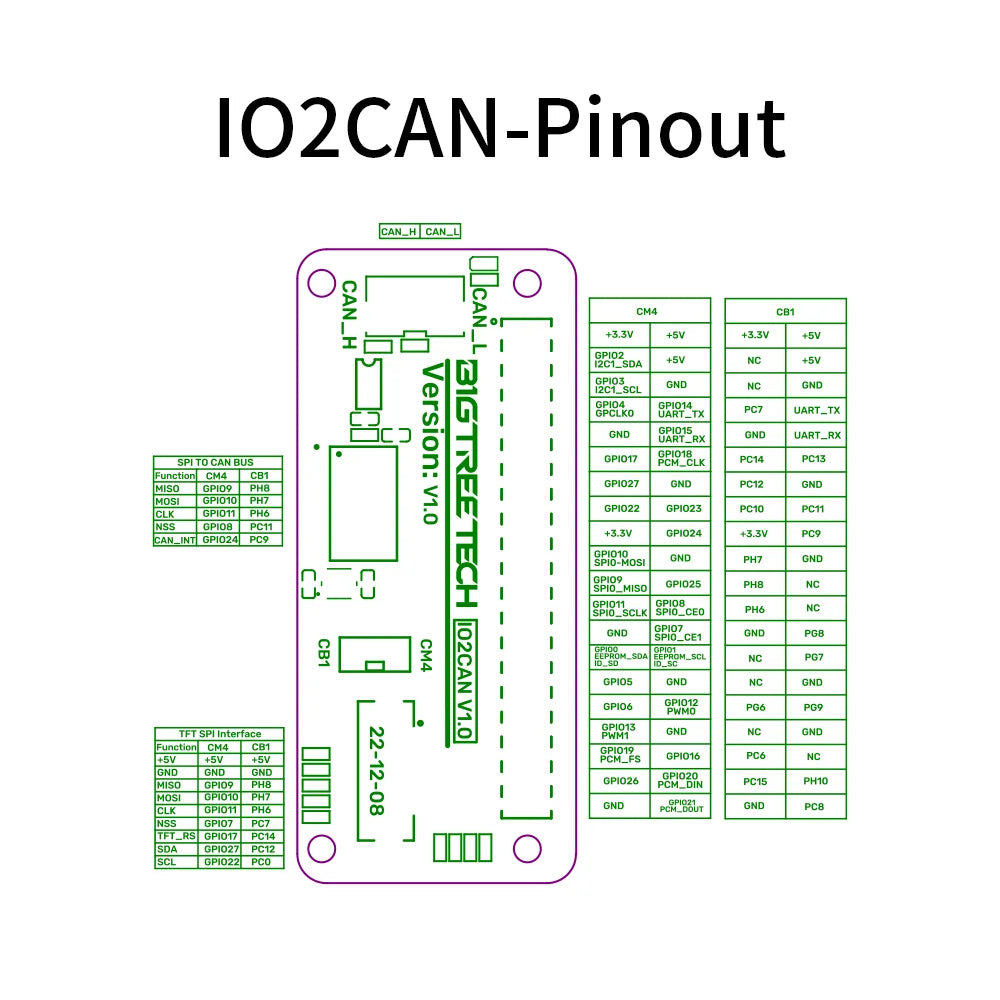

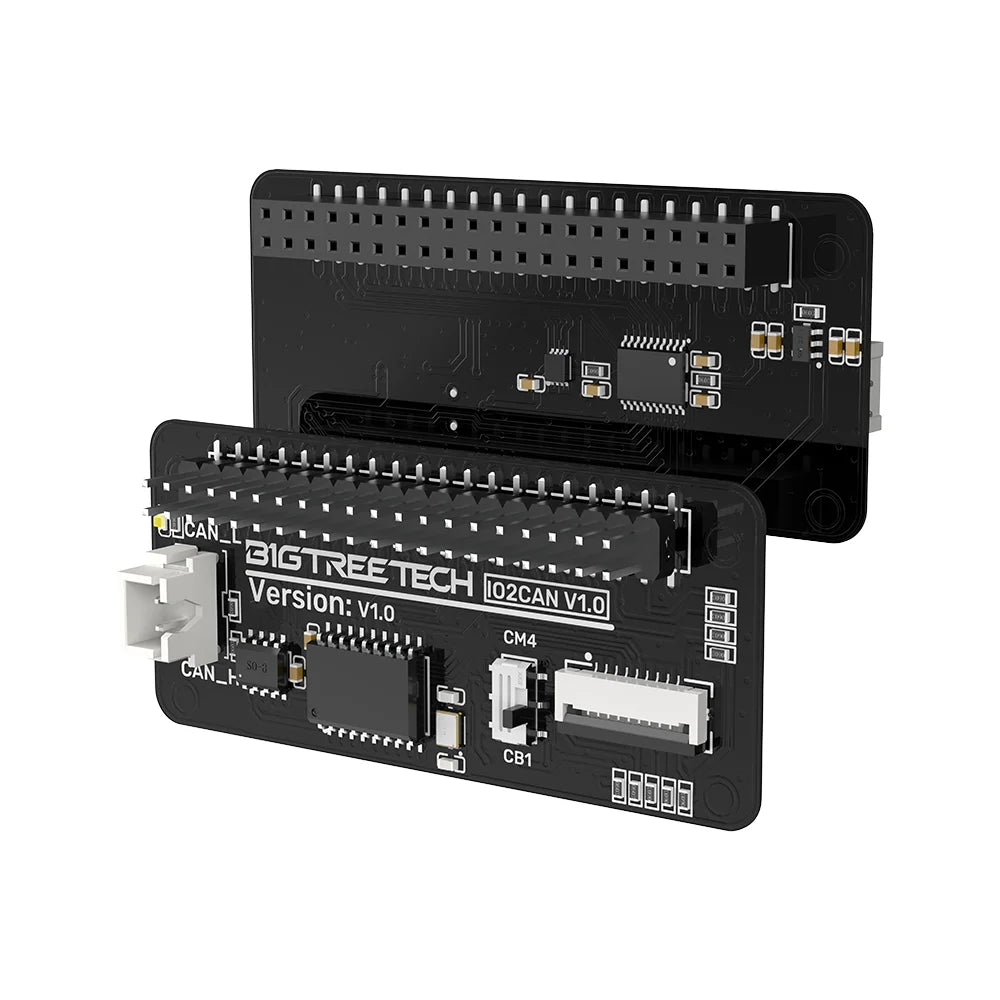

Due to the absence of an FPC IPS interface on the PI4B Adapter, when using TFT 35 SPI with the PI4B Adapter + CB1 v2.2, it still requires an IO2CAN module for interface conversion.
1. TFT35 SPI Brief Introduction

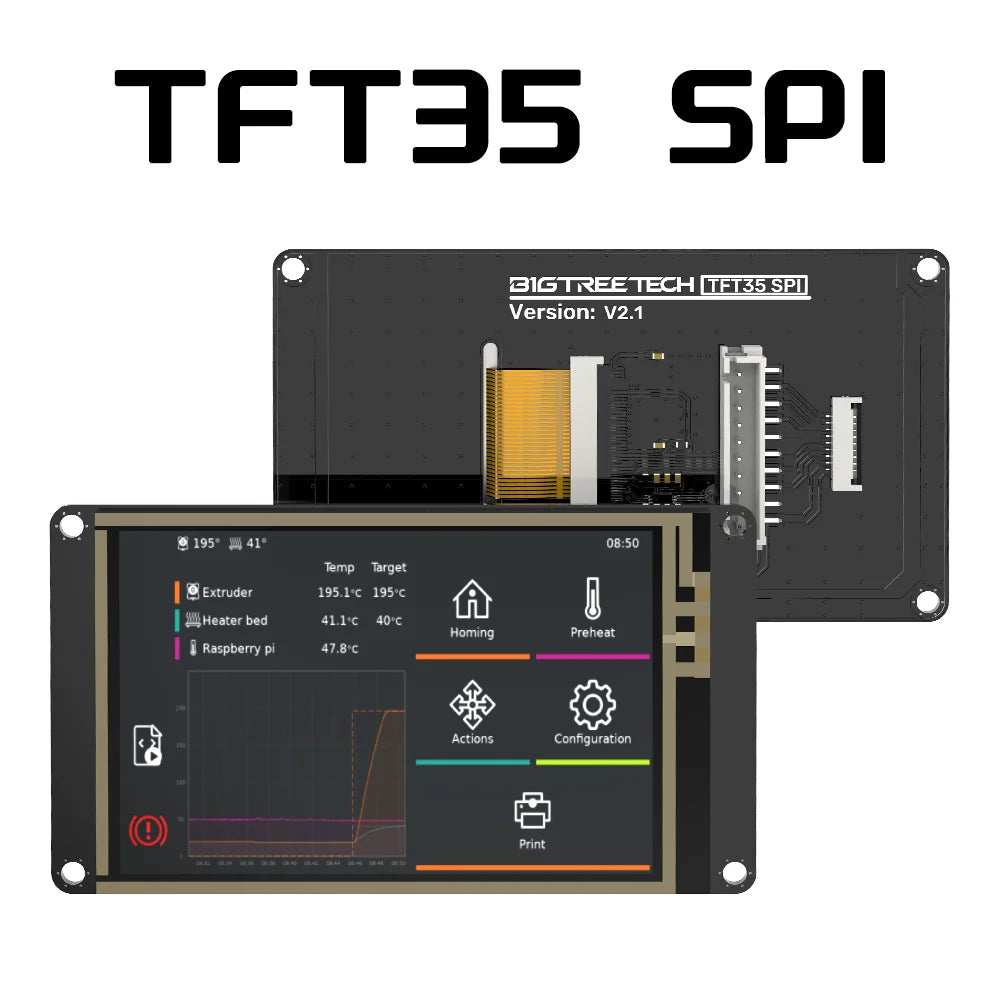

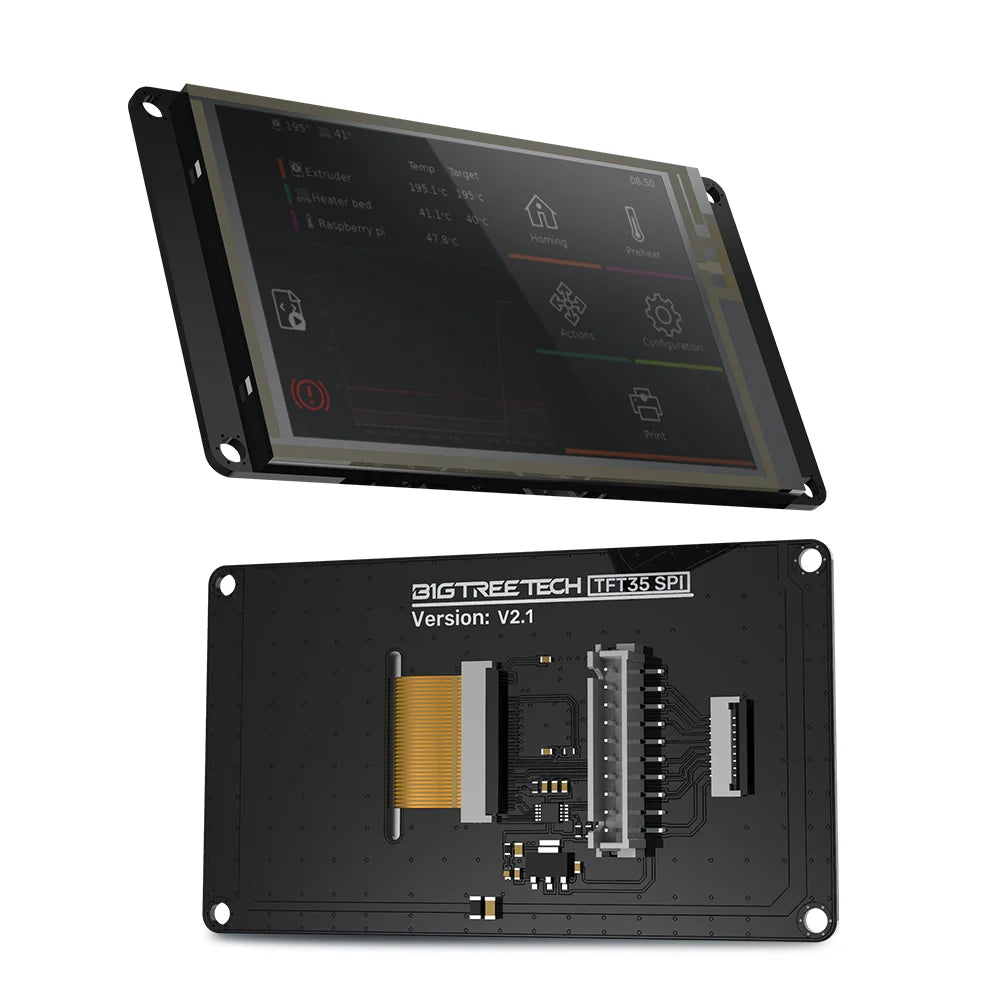

BIGTREETECH TFT35 SPI V2.1 is a medium-size and clear 3D printer display developed by the 3D printing team of Shenzhen Big Tree Technology Co., Ltd.
1. SPI is used for LCD display, and I2C is used for touch. The touch screen is controlled by the chip on the motherboard, which significantly reduces its cost.
2. It is connected to the motherboard through the FPC cable, simple and convenient.
3. Designed with XH2.54 terminal, which can communicate with the board through the terminal.

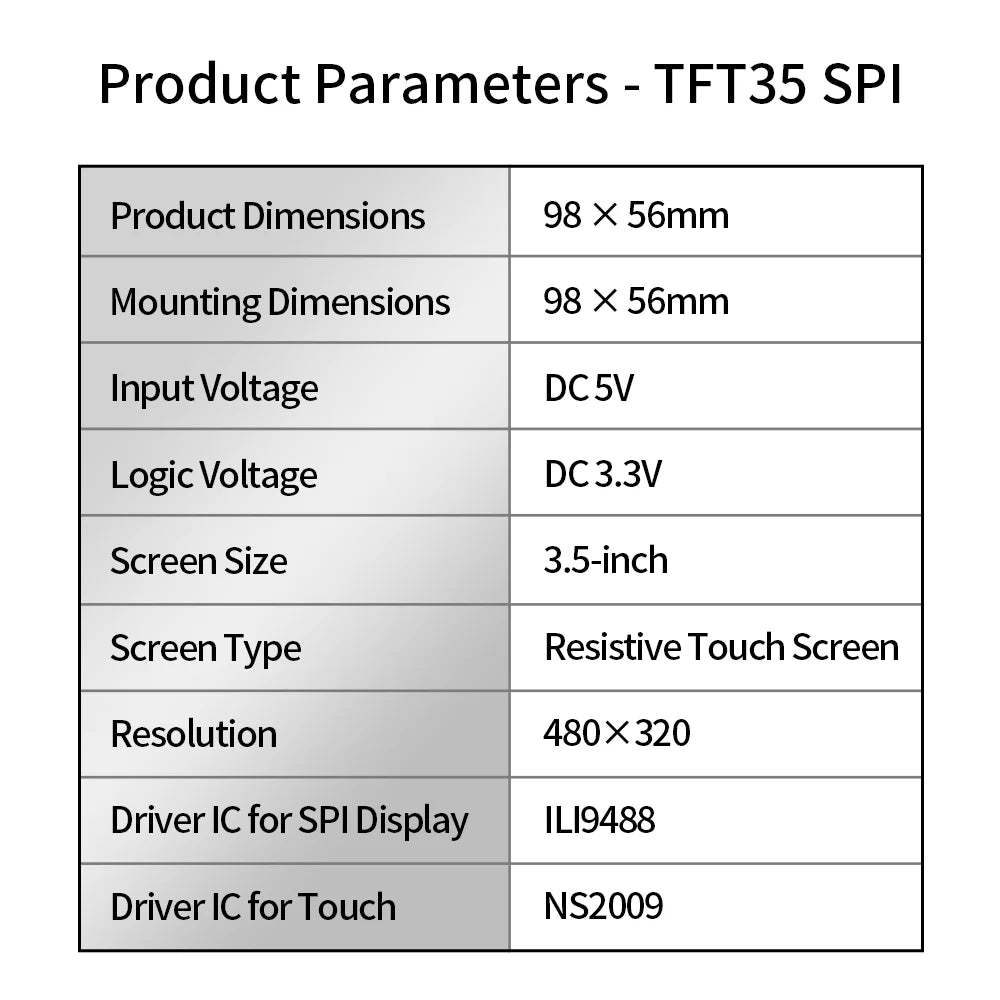

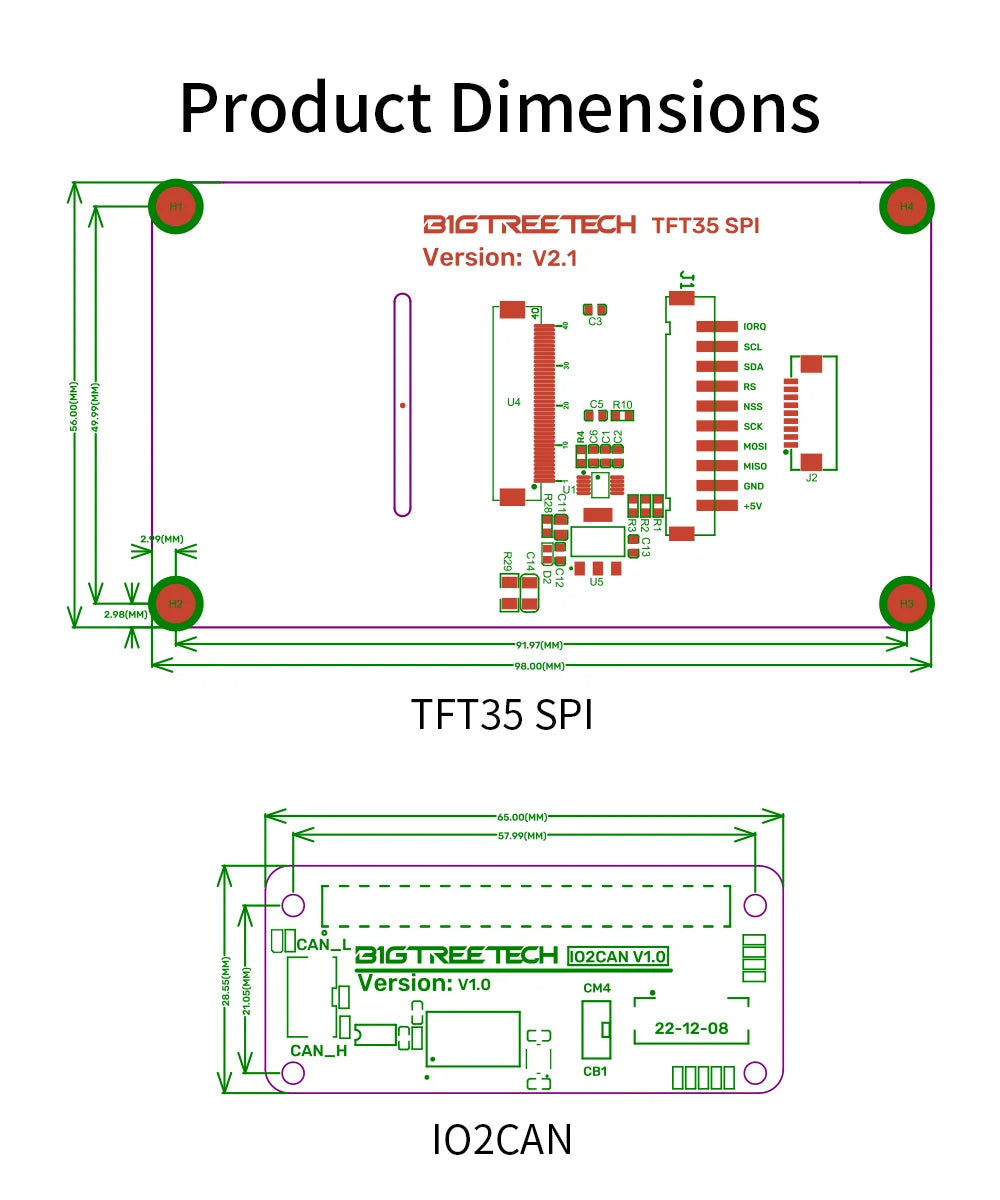

1. Product Dimensions: 98 x 56mm
2. Mounting Dimensions: 98 x 56mm
3. Input Voltage: DC 5V
4. Logic Voltage: DC 3.3V

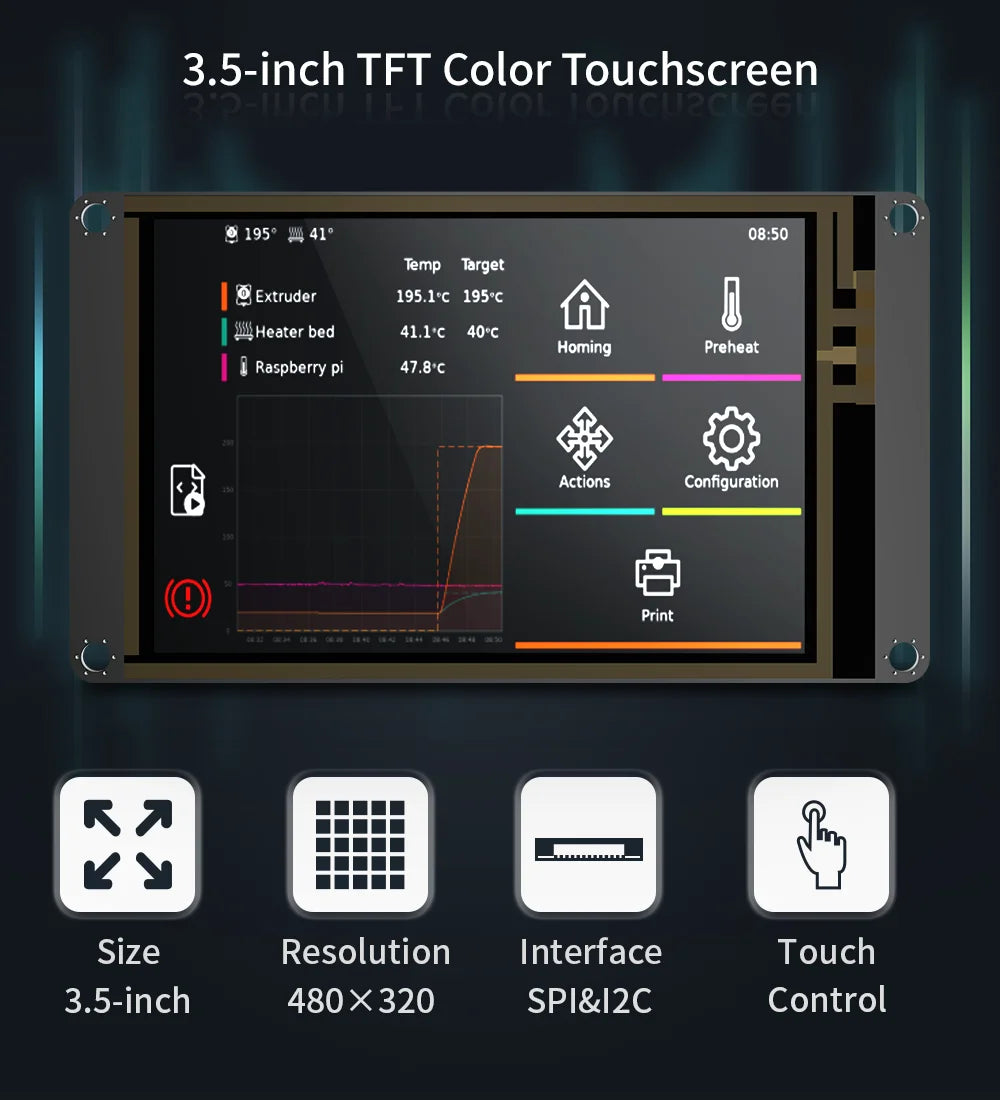

5. Screen Size: 3.5-inch

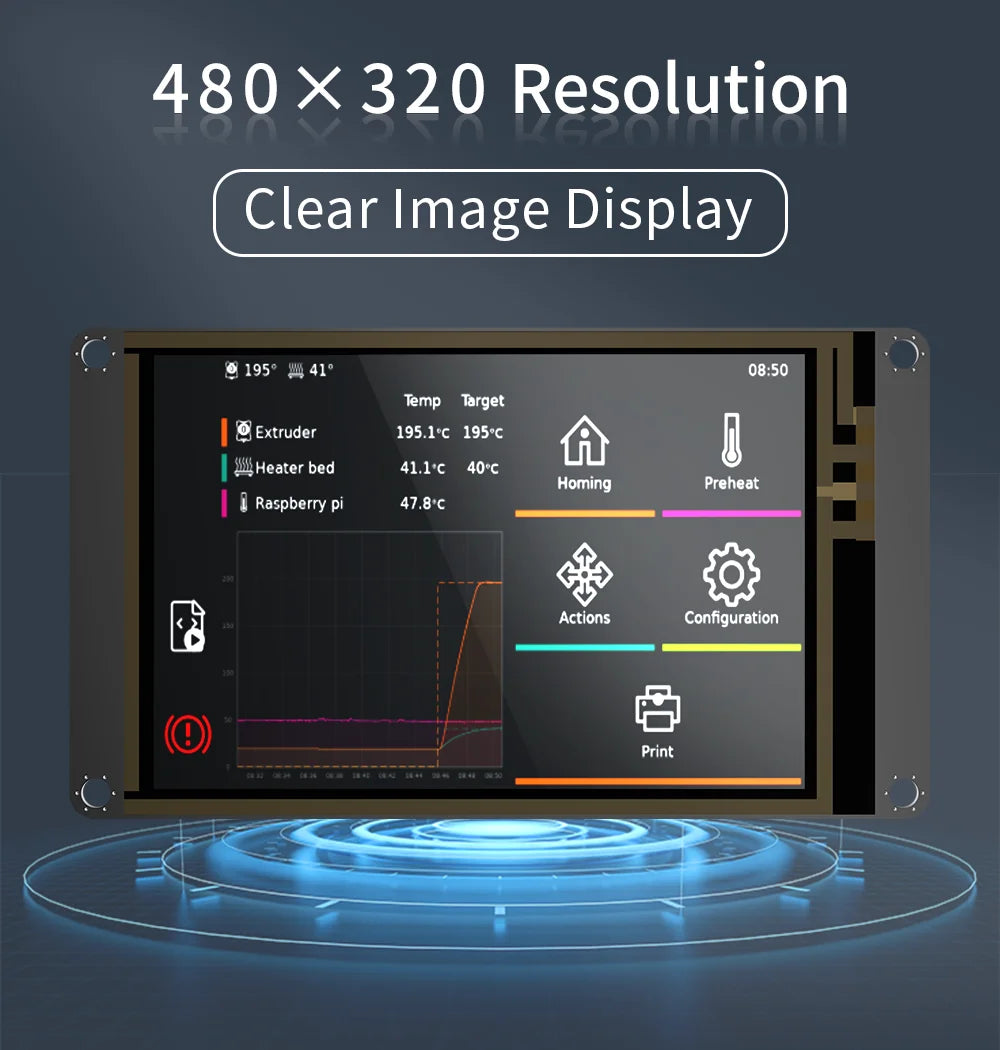

6. Resolution: 480x320
7. Driver IC for SPI Display: ILI9488
8. Driver IC for Touch: NS2009
